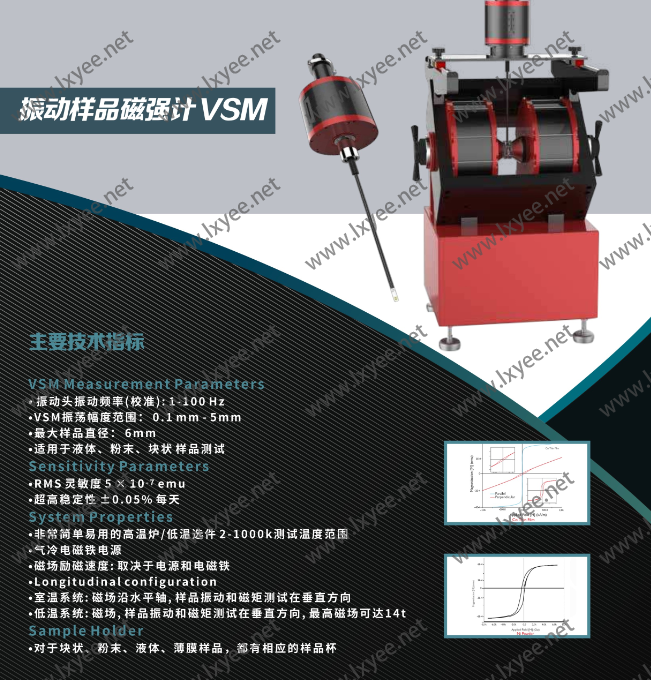

英國 Nanomagnetics 振動樣品磁強計 VSM

VSM Measurement Parameters

。振動頭振動頻率（校準）：1-100Hz

。VSM振蕩幅度范圍：0.1mm-5mm

。最大樣品直徑：6mm

。適用于液體，粉末，塊狀樣品測試

Sensitivity Parameters

。RMS靈敏度5*10^-7 EMU

。超高穩(wěn)定性 ±0.05%每天

System Properties

。非常簡單易用的高溫爐/低溫選件 2-1000K測試溫度范圍

。氣冷電磁鐵電源

。磁場勵磁速度：取決于電源和電磁鐵

。Longitudinal configuration

。室溫系統(tǒng)：磁場沿水平軸，樣品振動和磁矩測試在垂直方向

。低溫系統(tǒng)：磁場，樣品振動和磁矩測試在垂直方向，最高磁場可達14T

Sample Holder

。對于塊狀，粉末，液體，薄膜樣品，都有相應的樣品杯

UK Nanomagnetics vibration sample magnetometer VSM

VSM Measurement Parameters

.Vibration frequency of vibration head (calibration) : 1-100hz

.VSM oscillation range: 0.1mm-5mm

.Maximum sample diameter: 6mm

.Suitable for testing of liquid, powder ａnd lump samples

Sensitivity Parameters

.RMS sensitivity 5*10-7 EMU

.Ultra high stability ±0.05% per day

The System Properties

.Very easy to use high temperature furnace/low temperature options 2-1000k test temperature range

.Air cooled electromagnet power supply

.Magnetic field excitation speed: depends on the power supply ａnd electromagnet

.Longitudinal configuration

.Room temperature system: magnetic field along horizontal axis, sample vibration ａnd magnetic moment test in vertical direction

.Low temperature system: magnetic field, sample vibration ａnd magnetic moment test in vertical direction, maximum magnetic field up to 14T

The Sample Holder,

.For bulk, powder, liquid, ａnd film samples, there are corresponding sample cups
